AMSOIL Synthetic 20W-50 Motorcycle Oil (MCV)

High Performance Lubricant for Engines, Transmissions and Primary Chaincases - API SG, SL/CF, CG-4; JASO MA/MA2; ISO-L-EMA2; API GL-1

AMSOIL Synthetic Motorcycle Oils have been reformulated with new high performance additive technology that provides even greater multi-functional benefits for the special requirements of motorcycle applications. These independent and exclusive new AMSOIL formulations provide second-to-none viscosity protection for hot-running American and foreign motorcycle engines, transmissions and primary chaincases. Performance specifications include:API SG, SL/CF, CG-4; JASO MA/MA2; ISO-L-EMA2; API GL-1



For irrefutable proof of the superiority of AMSOIL Synthetic Motorcycle Oils refer to the AMSOIL A Study of Motorcycle Oils white paper.

AMSOIL Recommended Oils For Harley Davidson Motorcycles

AMSOIL Synthetic 20W-50 Motorcycle Oil (MCV) is a premium oil designed for those who demand the absolute best lubrication for their motorcycles. AMSOIL MCV is the result of extensive research, and it is specially formulated to excel in all areas unique to motorcycles, including high temperatures of air-cooled engines such as Harley Davidson^® V-Twin, wet clutch lubrication, extreme pressure regions of gears and chains and rust common to short trips and storage.

AMSOIL MCV is multi-functional and fulfills the requirements of both domestic and foreign motorcycles. It outperforms other conventional and synthetic motorcycle oils.

AMSOIL, the leader in automotive synthetic lubrication, produced the world's first API qualified synthetic motor oil in 1972. Trust the extensive experience of AMSOIL, The First in Synthetics^® , to do the best job protecting your motorcycle.

Reduces Friction, Heat and Wear

In high heat conditions, engine protection is not sacrificed with AMSOIL Synthetic Motorcycle Oil. It has the best high temperature film strength (see High Temperature Viscosity Protection graph below) of all oils tested and contains a heavy treatment of anti-wear additives to reduce wear regardless of the operating conditions (see Wear Comparison graph at right). AMSOIL MCV is thermally (heat) stable and contains maximum levels of oxidation inhibitor additives. It is extremely resistant to breakdown and engineered to prevent damaging sludge and carbon deposits for superior engine cleanliness.

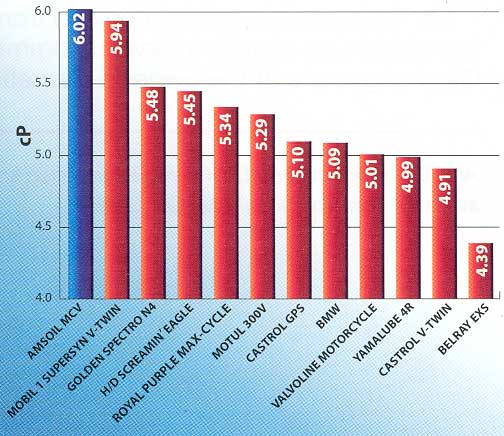

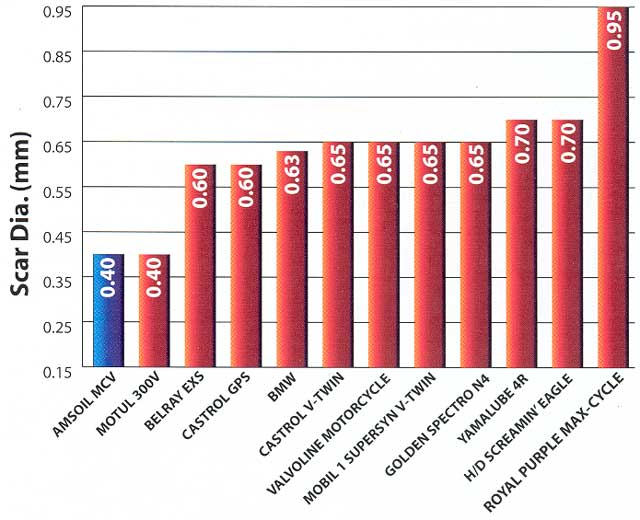

20W-50 Motorcycle Oil High Temperature Viscosity Protection Higher values reflect better film strength ASTM Test Method D-4683 March 16, 2005	20W-50 Motorcycle Oil Wear Comparison ASTM Test Method D-4172 March 16, 2005

Provides Extreme Pressure Quality Protection for Gears and Chains

With AMSOIL MCV, there is no need for separate transmission lubricants. It is absolutely shear stable and will not thin out from mechanical activity. AMSOIL MCV performs like a gear lube without the negative effects of extreme pressure additives. In the FZG gear test, AMSOIL MCV achieved a perfect score with a "zero" wear rating (see photo below).

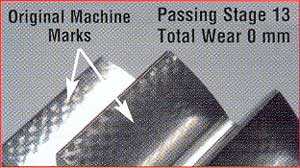

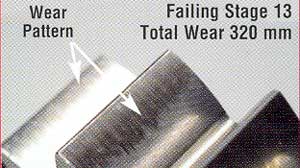

FZG Gear Test (ASTM D-5182) AMSOIL 20W-50 (MCV)	FZG Gear Test (ASTM D-5182) Motul 300V 15W-50

Delivers Superior Rust and Corrosion Protection

Motorcycles are prone to rust from storage, humidity and short drives. Rust can cause major damage such as uncontrolled wear, compression loss and blow-by. Good rust protection, however, comes by design and is not natural to engine oils. Unlike many motorcycle oils, AMSOIL MCV contains special anti-rust agents. It passes the ASTM D-1748 humidity cabinet rust test and clearly demonstrates superior rust protection (see photos below).

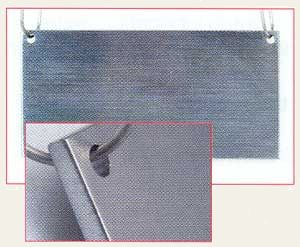

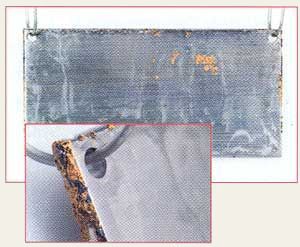

Rust Test ASTM D-1748 AMSOIL 20W-50 (MCV)	Rust Test ASTM D-1748 Castrol GPS 20W-50

Provides Excellent Wet Clutch Performance

AMSOIL MCV contains no friction modifiers and promotes smooth shifting and positive clutch engagement. AMSOIL MCV controls heat and prevents slippage and glazing, and its high TBN resists acids that can degrade clutch material, helping improve clutch life.

Applications

AMSOIL Synthetic 20W-50 Motorcycle Oil is recommended for liquid or air-cooled 4-stroke engines. It meets SAE 90, API GL-1 gear oil requirements and is recommended for transmissions and primary chaincases. AMSOIL MCV is recommended for Harley Davidson^®, Buell^®, KTM, Ducati^®, Aprilia^®, BMW^®, Triumph^® and other motorcycles where 15W-50 or 20W-50 engine oils or SAE 90, GL-1 gear oils are used. Not recommended where an API GL-4 or GL-5 gear oil is required.

Mixing AMSOIL

AMSOIL Synthetic 20W-50 Motorcycle Oil is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils, however, will shorten the oil life expectancy and reduce the performance benefits of AMSOIL. AMSOIL does not support extended drain intervals where oils have been mixed. Aftermarket oil additives are not recommended for use with AMSOIL motor oils.

Service Life

Recommended for use up to twice the motorcycle manufacturer change interval (miles/hours) or one year, whichever comes first, in engines, transmissions and primary chaincases. For Big Twin Harley-Davidson transmissions only, follow the Harley-Davidson recommended drain interval for synthetic oil of up to 20,000 miles or one year, whichever comes first. When using an engine filter other than AMSOIL Ea Motorcycle Filters, change the filter at standard intervals.

For "off road" use in engines and transmissions, change AMSOIL MCV at the standard motorcycle manufacturer change interval.

For racing or in engines modified from the original factory design, no change interval recommendation is made. Oil changes are at the owner's discretion.

AMSOIL Ea Motorcycle Oil Filters the highest efficiency filters available for the motorcycle market. They stop smaller particles, flow more oil and last longer than regular filters. For best performance, use AMSOIL Ea Filters.

Health & Safety

This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). An MSDS is available upon request at 715-392-7101 or on our website. Keep out of the reach of children. Don't pollute. Return used oil to collection centers.

Typical Technical Properties
AMSOIL High Performance Synthetic 20W-50 Motorcycle Oil (MCV)
Viscosity @ 100°C, cSt (ASTM D-445)	20.1
Viscosity @ 40°C, cSt (ASTM D-445)	152.0
Viscosity Index (ASTM D-2270)	153
Flash Point °C (°F) (COC) (ASTM D-92)	240 (464)
Pour Point °C (°F) (COC) (ASTM D-97)	-39 (-38)
NOACK (% weight loss) (ASTM D-5800)	3.90
Four Ball Wear, 150°C, 1800 rpm, 40kg, 1 hour (ASTM D-4172B)	0.40
Foam (ASTM D-892, Sequence I, II & III)	0/0/0
Shear Stability Kurt Orbahn (ASTM D-6278), % viscosity change 120 cycles	0.25
Rust Test - Humidity Cabinet (ASTM D-1748)	No Rust, PASS
High Temperature/High Shear Viscosity (ASTM D-4683 @ 150°C, 1.0 X 106 s.-1), cP	6.02
Total Base Number	11.1
