Series 2000 Synthetic Racing Grease
"Unbeatable high-speed/high temperature performance"
Ultimate protection for hard-driven, high-performance
vehicles. Dramatically reduces friction and wear for improved performance.
Excels at both high and low temperature performance. Outperforms other
conventional and synthetic greases.
Product
Code: GRG
Applications
AMSOIL Series 2000 Synthetic Lithium Complex Racing Grease meets the highest
performance standards of the National Lubricating Grease Institute, GC for wheel bearing
applications and LB for chassis applications.
|
Load Capacity
AMSOIL Series 2000 Racing Grease is an extreme-pressure multi-purpose grease formulated
for high-temperature/high-speed applications. Yet, it excels in the protection of
low-speed bearings, a job usually reserved for heavy-duty products. Components get the
load bearing capacity of a heavy-duty grease without sacrificing the high-temperature
protection of a multi-purpose.
Anti-Wear Performance

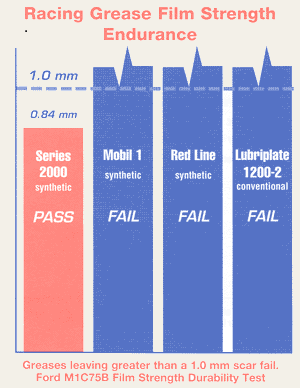

AMSOIL Series 2000 Racing Grease passes the Ford Film Strength Endurance Test with a 16
point margin (see graph). Most nonsolid-fortified racing greases, synthetic or
conventional, do not pass. AMSOIL Series 2000 Racing Grease keeps greased components in
like-new condition.
All-Temperature Protection
AMSOIL Series 2000 Racing Grease pairs a high Viscosity Index synthetic base oil with a
top-quality lithium complex thickener, known for its extraordinary performance in
temperature extremes. AMSOIL Series 2000 Racing Grease offers excellent low-temperature
pumpability and high-temperature consistency for dependable all-temperature protection.
Oxidation Resistance and Inhibition
AMSOIL Series 2000 Racing Grease’s excellent oxidation resistance and robust
package of oxidation inhibitors prevent grease breakdown and component surface damage in
the highly oxidizing conditions associated with high temperature operations.
Friction Reduction
AMSOIL Series 2000 Racing Grease maximizes power through-put and fuel efficiency by
minimizing friction. The extra power given by Series 2000 improves acceleration and
top-end speed.
Washout Resistance and Corrosion Inhibition
AMSOIL Series 2000 Racing Grease resists water wash out and inhibits rust and other
forms of corrosion.
| Typical Technical Properties |
| AMSOIL Synthetic Lithium Complex Racing
Grease |
NLGI
GC-LB |
Series 2000 Racing Grease |
| Thickener |
NR* |
Lithium Complex |
| NLGI Consistency Grade |
NR* |
2 EP |
| NLGI Performance Grade |
NR* |
GC-LB |
| Penetration (ASTM D-217) 25° C [77° F], 0.1 mm Worked 60
strokes |
220 - 340 |
265 - 295 |
| Dropping Point (ASTM D-566) °C [77° F] |
220 [428] |
285 [545] |
| Water Washout (ASTM D-1264) 79° C [175° F] % loss |
15 max |
5.1 |
| Oil Separation (ASTM D-1742) 24 hr. @ 25° C [77° F], % loss |
10 max |
2.8 |
| Rust Protection (ASTM D-1743) |
pass |
pass |
| Timken OK Load Test (ASTM D-2509), lbs. |
NR* |
60 |
| Fortified with Moly Compound |
NR* |
no |
| Four Ball Wear Test (ASTM D-2266) Wear Scar Diameter, mm |
0.9 max |
0.32 |
| Compatibility with other greases |
NR* |
excellent |
| Extreme Pressure, Four Ball Method (ASTM D-2596) Weld Point,
kgf |
200 min |
400 |
| Extreme Pressure, Four Ball Method (ASTM D-2596) Load Wear
Index, kgf |
30 min |
65 |
| High Temperature Life (ASTM D-3527) hours |
80 min |
300 |
| Fretting Wear (ASTM D-4170)* mg |
10 max |
3.4 |
| Elastomer Compatibility (ASTM D-4289) Volume Change, %, GC |
-5 to +30 |
21.6 |
| Elastomer Compatibility (ASTM D-4289) Volume Change, %, LB |
0 to +30 |
9.88 |
| Elastomer Compatibility (ASTM D-4289) Hardness Change,
durometer-A points, GC |
+2 to -15 |
-3 |
| Elastomer Compatibility (ASTM D-4289) Hardness Change,
durometer-A points, LB |
0 to -10 |
-6 |
| Leakage (ASTM D-4290), G* |
10 max |
6.0 |
| Low Temperature Torque (ASTM D-4693) n·m, max @ -40° C
[-40° F] |
15.5 |
2.3 |
| Water Spray Off (ASTM D-4049), % max |
NR* |
22.7 |
| * NR: Not Required for NLGI GC or LB labeling |
|
